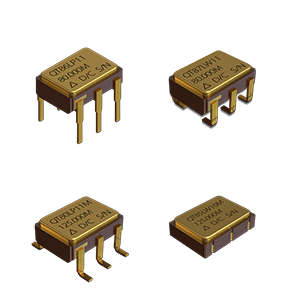

Q-Tech具有4點安裝5x7晶體振蕩器

發布時間：2021-05-10 17:13:32     瀏覽：1180

Q-Tech的5X7mm含有4點安裝晶體振蕩器，在極其小的封裝中提供最先進性的沖擊和振動靈敏度。Q-Tech振蕩器采用4點晶體安裝，這也是空間應用所必需的（至少3點）。

深圳市立維創展科技有限公司授權代理銷售Q-TECH產品，備件現貨，歡迎與業界同行合作。

詳情了解Q-Tech請點擊： http : //m.yag6.com/public/brand/60.html

或聯系我們的銷售工程師： 0755- 83642657    QQ：  2295048674


Package

Dimensions (mm)

Market

Device Type

Logic Type

Supply Voltage

Package Type

Stability

Phase Noise Floor

QT180, QT181, QT182, QT183, QT184, QT185, QT186, QT187, QS180, QS181, QS182, QS183, QS184, QS185, QS186, QS187

5.00 x 7.00

Space

5x7 w/ 4pt Mount

ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL

2.5 to 5.0Vdc

5 x 7mm 4-Point Mount

±25ppm to ±100ppm

Contact Q-Tech

QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F

5.00 x 7.00 x 2.00

Military & Avionics

5x7 w/ 4pt Mount

CMOS, HCMOS, TTL

1.8 to 5Vdc

Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin

±50ppm to ±100ppm

-162 dBc/Hz @ 40MHz

QT81, QS81

5.00 x 7.00 x 2.00

High Temp

5x7 w/ 4pt Mount

CMOS, LVHCMOS, TTL

1.8 to 5Vdc

Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin

±175ppm to ±450ppm

Contact Q-Tech

QT86

5.00 x 7.00 x 2.00

High Temp

5x7 w/ 4pt Mount

CMOS, LVHCMOS, TTL

1.8 to 5Vdc

Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin

±175ppm to ±450ppm

Contact Q-Tech

QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F,

5.00 x 7.00 x 2.00

Military & Avionics

5x7 w/ 4pt Mount

LVDS, LVPECL

2.5 to 3.3Vdc

Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin

±50ppm to ±100ppm

-143 dBc/Hz @ 125MHz
